Cummins engine powered soundproof 600m ³ flow self-priming drainage pump trailer
JLT-CP200-600-20
1. High flow water pump trailer, equipped with diesel engine, wheeled chassis with reserved traction position, can adjust vehicle balance at any time;
2. The control system collects real-time power parameters and monitors and protects the operation of the unit; Equipped with overspeed, high water temperature, and low oil pressure protection;
3. Suitable for working in multiple scenarios and outdoor environments without electricity, collecting water pits or well point drainage outlets, emergency rescue and flood discharge, urban drainage and fire emergency rescue, farmland irrigation, remote fire water supply, mine drainage, etc
2. The control system collects real-time power parameters and monitors and protects the operation of the unit; Equipped with overspeed, high water temperature, and low oil pressure protection;
3. Suitable for working in multiple scenarios and outdoor environments without electricity, collecting water pits or well point drainage outlets, emergency rescue and flood discharge, urban drainage and fire emergency rescue, farmland irrigation, remote fire water supply, mine drainage, etc
Quantity:
□Technical Parameter
| JLT-CP200-600-20 | ||
| Model | JLT-CP200-600-20 | |
| 1500r/min | Flow rate (m3/h) | 600 |
| Head (m) | 20 | |
| Maximum suction stroke (m) | 6.7 | |
| Inlet pipe diameter size (mm (in)) | 200(8’) | |
| Outlet pipe diameter size (mm (in)) | 200(8’) | |
| Overall dimensions of the machine (mm) | 2300×1600×2200(Excluding tow bar) | |
| Whole machine weight (Kg) | 1500 | |
| Engine | ||
| Engine brand | Cummins | |
| Engine model | 4BTA3.9-P95 | |
| Speed (r/min) | 1500 | |
| Engine power (Kw) | 70 | |
| Number of gas cylinders | 4 | |
| Engine structure | 4-stroke, inline, water-cooled engine | |
| Fuel tank capacity (L) | 150 | |
| Water Pump | ||
| Pump head type | Non clogging self-priming pump | |
| Pump head model | SP-8 | |
| Control system | ||
| controller | HGM1790N | |
| Warning lights | LED Warning lights， DC12/DC24V (1PCS) | |
| Work lighting | Waterproof LED light，DC12、24V 24W （1PCS) | |
| Mobile trailer | Single axle two wheel, manual/electromagnetic brake system, manual support foot, vehicle driving indicator light, etc | |
| Standard random accessories | ||
| Pipeline accessories | Inlet pipe: 8m, drainage pipe: 25m, equipped with bottom valve, Paul joint, adjustable height trailer arm | |
| Random tool | Jinlongteng Random Toolbox | |

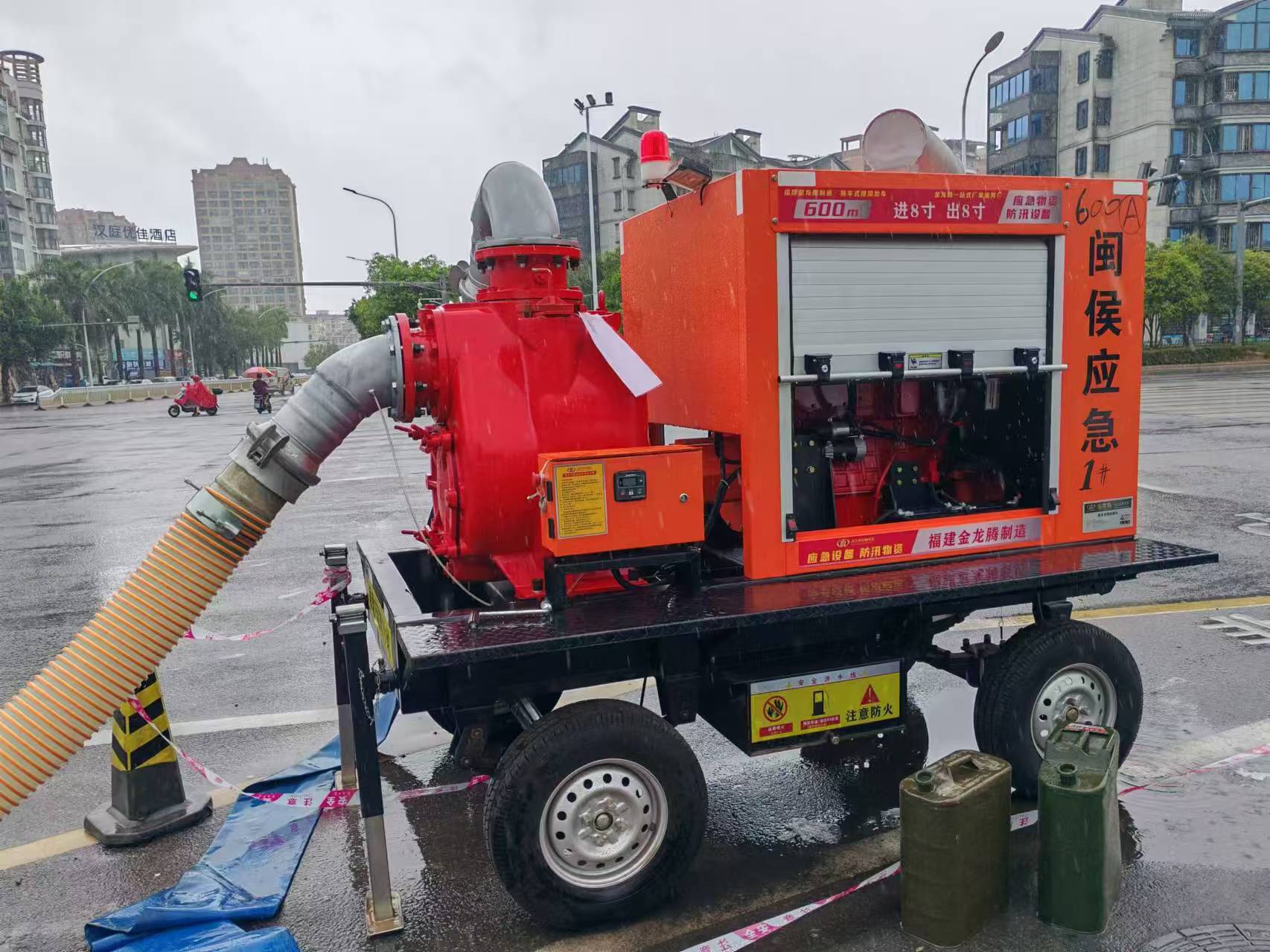

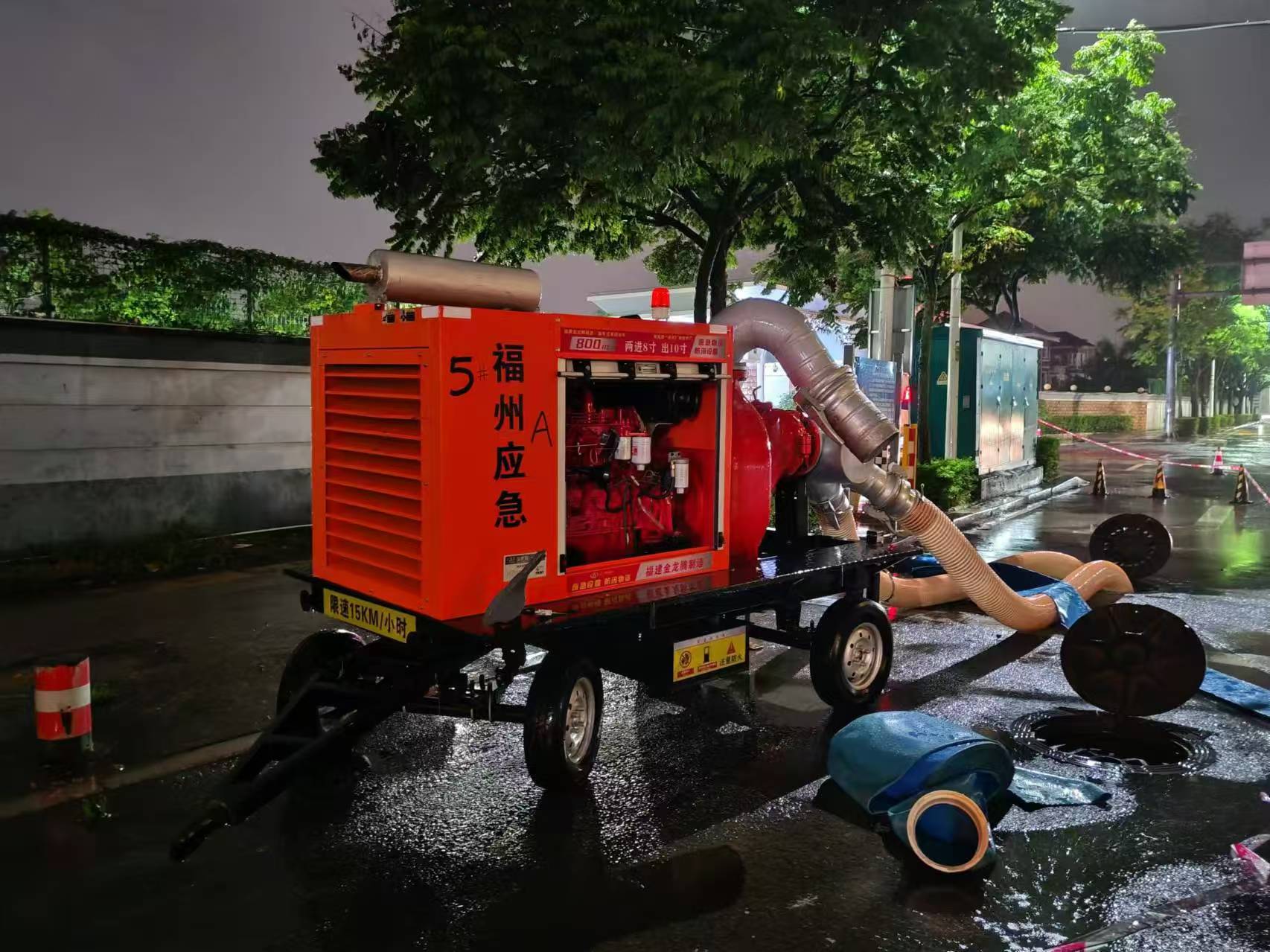

□Product Display
